Wireless Call Systems AN920 / BN920

Summary

Wireless Call Systems

AN920 / BN920

Wireless Call Systems

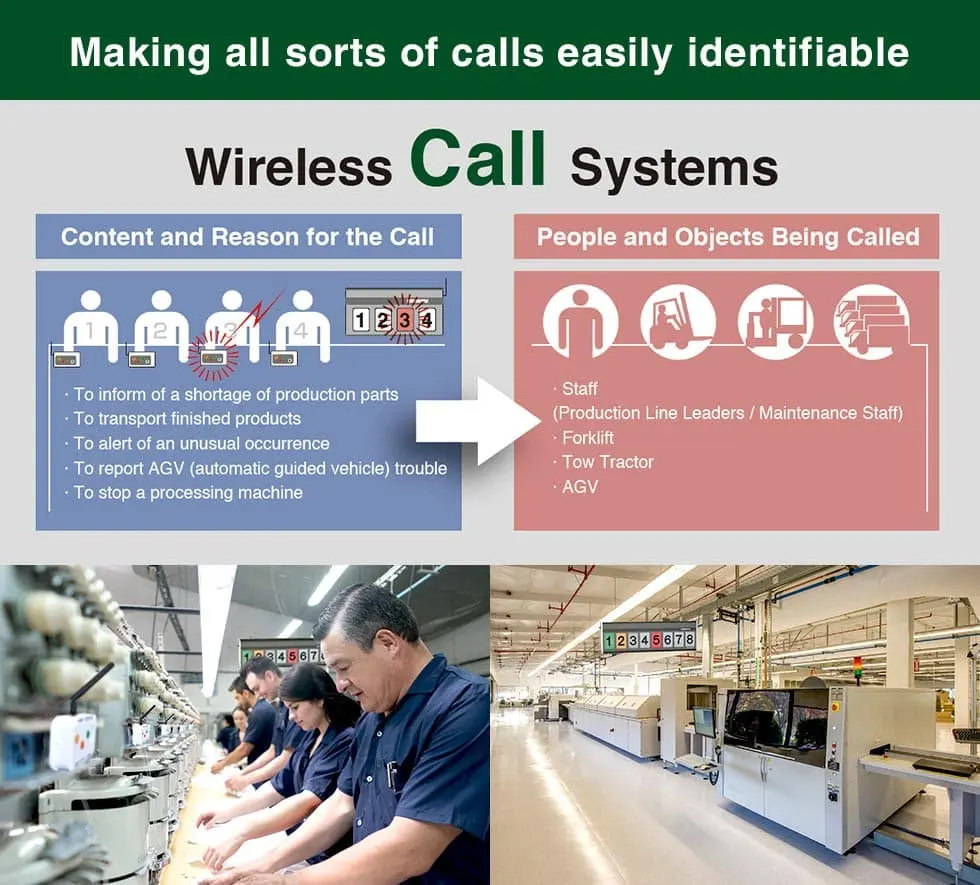

Making all sorts of calls easily identifiable

‘Please watch a video of Wireless Call Systems AN920 / BN920.

Line-up

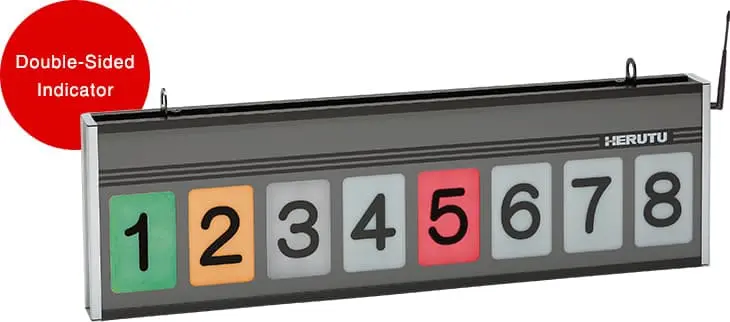

AN920R[Large-Sized 8-Indicator Type]

Communication Distance:
approx. 500 m (547 yd) (Indoor)
approx. 1 km (0.62 mi.) (Line of Sight)

1-Indicator Dimensions
(H x W) 150 x 100 mm (5.9 x 3.9")

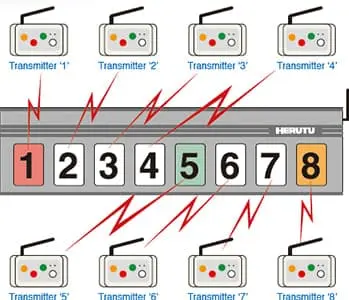

The AN920R series illuminates each indicator independently for corresponding calls from the transmitter AN920T. Each transmitter corresponds to one of the indicators. Because the color of each indicator will change according to the input signal of the transmitter, a separate meaning can be assigned per color.

AN920R[Large-Sized 8-Indicator Type]

Configuration

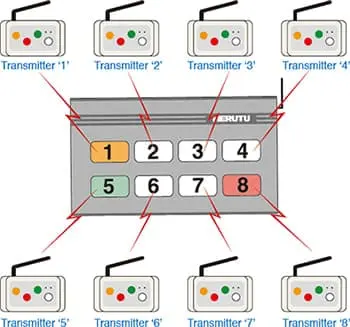

AN920R can be used in combination with eight AN920T transmitters.

N920R can be used in combination with eight AN920T transmitters.

Option

In addition to the indicator lights, a speaker can be installed that enables sound notifications.
A different melody for each indicator color can be configured (when multiple colors are illuminated, the melody is selected according to the priority order).

In addition to the indicator lights, a speaker can be installed that enables sound notifications.A different melody for each indicator color can be configured (when multiple colors are illuminated, the melody is selected according to the priority order).

AN920RH[Large-Sized 4-Indicator Type]

Communication Distance:
approx. 500 m (547 yd) (Indoor)
approx. 1 km (0.62 mi.) (Line of Sight)

1-Indicator Dimensions
(H x W) 150 x 100 mm (5.9 x 3.9")

AN920RH[Large-Sized 4-Indicator Type]

Configuration

AN920RH can be used in combination with four AN920T transmitters.

AN920RH can be used in combination with four AN920T transmitters.

Option

In addition to the indicator lights, a speaker can be installed that enables sound notifications. A different melody for each indicator color can be configured.

In addition to the indicator lights, a speaker can be installed that enables sound notifications. A different melody for each indicator color can be configured.

AN920RM[Medium-Sized 8-Indicator Type]

Communication Distance:
approx. 500 m (547 yd) (Indoor)
approx. 1 km (0.62 mi.) (Line of Sight)

1-Indicator Dimensions
(H x W) 50 x 90 mm (2.0 x 3.5")

AN920RM[Medium-Sized 8-Indicator Type]

Configuration

AN920RM can be used in combination with eight AN920T transmitters.

AN920RM can be used in combination with eight AN920T transmitters.

Option

In addition to the indicator lights, a speaker can be installed that enables sound notifications. A different melody for each indicator color can be configured.

In addition to the indicator lights, a speaker can be installed that enables sound notifications. A different melody for each indicator color can be configured.

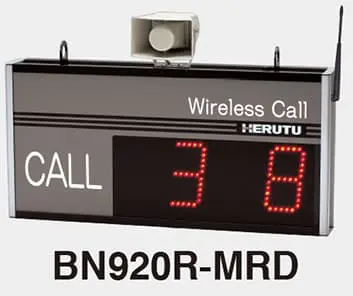

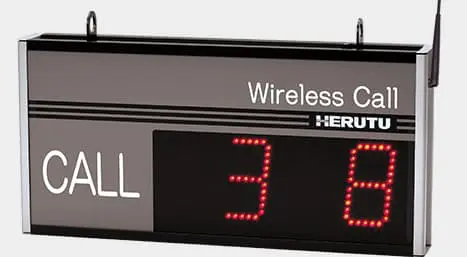

BN920R/BNW920R

The BN920R series illuminates numbers
corresponding to calls from the transmitter AN920T. This series can respond to calls from up to 64 transmitters. Numbers corresponding to calls that are not displayed are stored internally for displaying later.

Communication Distance:
approx. 500 m (547 yd) (Indoor)
approx. 1 km (0.62 mi.) (Line of Sight)

1-Charater Height 110 mm (4.3")

BN920R/BNW920R

Configuration

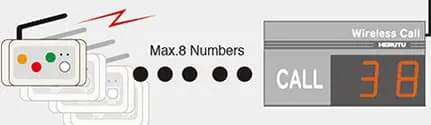

1-Digit Type Supporting up to 8 Transmitters

Since the indicator numbers corresponding with calls are a single digit, calls from up to 4 transmitters can be indicated simultaneously.

AN920RM can be used in combination with eight AN920T transmitters.

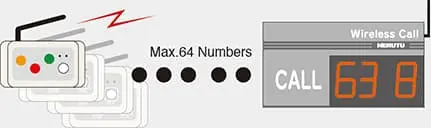

2-Digit Type Supporting up to 64 Transmitters

Since the indicator numbers corresponding with calls are a double-digit, calls from up to 2 transmitters can be indicated simultaneously.

AN920RM can be used in combination with eight AN920T transmitters.

Option

In addition to the indicator lights, a speaker can be installed that enables sound notifications. A different melody for each indicator color can be configured.

In addition to the indicator lights, a speaker can be installed that enables sound notifications. A different melody for each indicator color can be configured.
AN920T(Transmitter)

Inputs

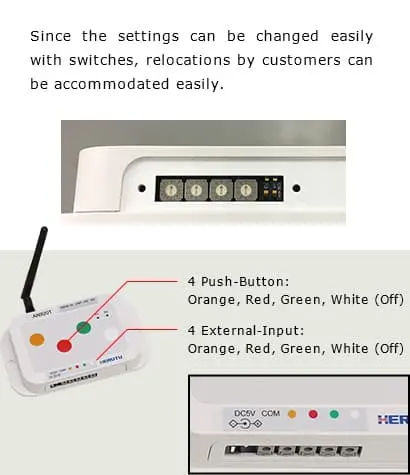

Each transmitter corresponds to an indicator on the receiver.
LEDs illuminate each indicator on the receiver a particular color, according to the corresponding input from the transmitter.
The terminal block input illuminates in the same way.
* The color of each input represents the color of illumination of the corresponding indicator on the receiver, except the white input turning off the corresponding indicator.
‘ 4 Push-Button: Orange, Red, Green, White (Off)
‘ 4 External-Input: Orange, Red, Green, White (Off)
* An AC Adapter is the power source.

AN920T(Transmitter)

Manuals

Catalogs

Specifications

Wireless Segment Specifications
Item Specifications
Standards FCC:Part15 Sub Part C ˜15.247 IC:RSS-210
Frequency Band 903 MHz-927 MHz
Modulation Method LoRa Technology
Communication Method Half Duplex

* The actual wireless communication distance may vary depending on the environment in use.

AN920T (Transmitter)
Indicator Element 1 Red LED(Tx), 1 Green LED(Rx)
Input(s) 4 Push-Button, 4 External-Input
Power Source AC 100-240V (Using included AC Adapter)
External Dimensions (W x H x D) 150 x 85 x 25 mm (5.9 x 3.3 x 1.0")
Weight Approx.0.2kg(0.4lb)
Operating Environment Temperature: 0-50‹C (32-124‹F)
Humidity: 20-85% (without condensation)
Code Settings 16,000 Configurations
(Channel Numbers:1-16 ~ Set Numbers:0-9 ~ Unit Numbers:0-9 ~ ID:0-9)
AN920R (Large-Sized 8-Indicator Type)
Indicator Element 8 Indicator Lamps (Indicator Dimensions (H x W) 150 x 100 mm (5.9 x 3.9"))
Double-Sided Indicator * 3-Color LED (Orange, Red, Green)
Output(s) 4 Open Collector Outputs (Max. Rated Load DC 35V 50mA)
1 Relay Output (Max. Rated Load AC/DC 30V 0.5A)
Input(s) 2 Non-voltage Contact-Input
1 Reset All / 1 Reset Output
Power Source AC100-240V (Using included AC Adapter)
Wattage Max. 90W
External Dimensions (W x H x D) 1,000 x 300 x 80 mm (39.4 x 11.8 x 3.1")
(except any protruding object such as an antenna)
Weight Approx. 8 kg (17.6 lb)
Operating Environment Temperature: 0-40‹C (32-104‹F)
Humidity: 85% or less (without condensation)
Code Settings 1,600 Configurations
(Channel Numbers:1-16 ~ Set Numbers:0-9 ~ Unit Numbers:0-9)

* The model with a speaker is AN920R-MRD.

AN920RM (Medium-Sized 8-Indicator Type)
Indicator Element 8 Indicator Lamps (Indicator Dimensions (H x W) 50 x 90 mm (2.0 x 3.5")
Double-Sided Indicator * 3-Color LED (Orange, Red, Green)
Output(s) 4 Open Collector Outputs (Max. Rated Load DC 35V 50mA)
1 Relay Output (Max. Rated Load AC/DC 30V 0.5A)
Input(s) 2 Non-voltage Contact-Input
1 Reset All / 1 Reset Output
Power Source AC100-240V (Using included AC Adapter)
Wattage Max. 33W
External Dimensions (W x H x D) 600 x 300 x 80 mm (23.6 x 11.8 x 3.1")
(except any protruding object such as an antenna)
Weight Approx. 5.8 kg (12.8 lb)
Operating Environment Temperature: 0-40‹C (32-104‹F)
Humidity: 85% or less (without condensation)
Code Settings 1,600 Configurations
(Channel Numbers:1-16 ~ Set Numbers:0-9 ~ Unit Numbers:0-9)

* The model with a speaker is AN920RM-MRD.

BN920R (Number Indicator Type)
Indicator Element 4-Digit Indicator, High Brightness Red, 7-Segment LED,
Single-Sided Indicator,
Indicator Letter Dimensions (H x W) 110 x 60 mm (4.3 x 2.4")
Output(s) 2 Open Collector Outputs (Max. Rated Load DC 35V 50mA)
2 Relay Outputs (Max. Rated Load AC125V 0.5A / DC 24V 1A)
Input(s) Optional Keyboard Unit (KE-2)
Power Source AC100-240V (using included AC adapter)
Wattage Max. 25W
External Dimensions (W x H x D) 600 x 290 x 80 mm (23.6 x 11.4 x 3.1")
(except any protruding object such as an antenna)
Weight Approx. 5.5kg (12.1 lb)
Operating Environment Temperature: 0-50‹C (32-122‹F)
Humidity: 85% or less (without condensation)
Code Settings 160 Configurations
(Channel Numbers:1-16 ~ Set Numbers:0-9)

* The model with the double-sided indicator specification is BNW926R.
* The models with a speaker are BN920R-MRD and BNW920R-MRD.

AN920RH (Large-Sized 4-Indicator Type)
Indicator Element 4 Indicator Lamps (Indicator Dimensions (H x W) 150 x 100 mm (5.9 x 0.4"))
Double-Sided Indicator * 3-Color LED (Orange, Red, Green)
Output(s) 4 Open Collector Outputs (Max. Rated Load DC 35V 50mA)
1 Relay Output (Max. Rated Load AC/DC 30V 0.5A)
Input(s) 2 Non-voltage Contact-Input
1 Reset All / 1 Reset Output
Power Source AC100-240V (using included AC Adapter)
Wattage Max. 44W
External Dimensions (W x H x D) 600 x 300 x 80 mm (23.6 x 11.8 x 3.1")
(except any protruding object such as an antenna)
Weight Approx. 5.3 kg (11.7 lb)
Operating Environment Temperature: 0-40‹C (32-104‹F)
Humidity: 85% or less (without condensation)
Code Settings 1,600 Configurations
(Channel Numbers:1-16 ~ Set Numbers:0-9 ~ Unit Numbers:0-9)

* The model with a speaker is AN920RH-MRD.

The indicator numbers are changeable. Please specify the numbers.

Examples

›Case of calling from 16 Sites

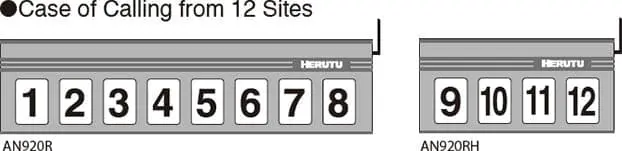

›Case of calling from 12 Sites
