Industrial Remote Control

"Reliable Connectivity, Unmatched Control"

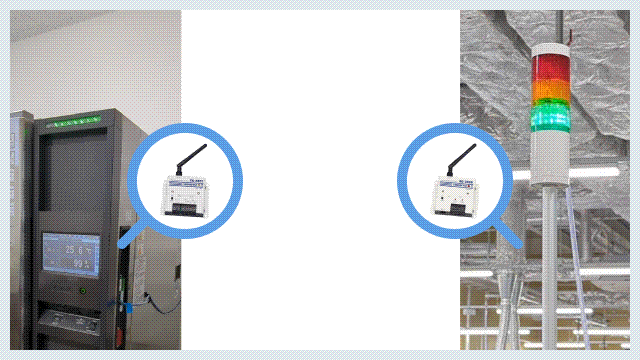

Contact Type

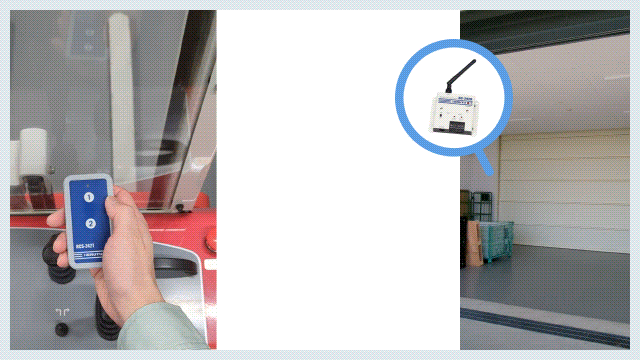

Push-Button Type

Available in Canada / USA / India

The industrial remote control of Herutu Electronics Corporation can realize wireless communication that is stable and resistant to radio interference.
The lineup of transmitters includes push-button types and contact types, and the combination of transmitters and receivers supports a wide range of configurations such as one-to-one, one-to-many (1 to N), and many-to-one (N to 1).
With no monthly fees, a simple wireless control system can be built.

To Download Catalog

Usage Examples

Operation of AGVs
- Industries:
- Automobile
- Industrial Machinery
By utilizing wireless equipment, it becomes possible to provide driving instructions to AGVs (Automated Guided Vehicles) and monitor their operational status.
Since no wiring is required, layout changes can be accommodated flexibly, contributing to the optimization of transport operations.
Abnormality Notification
- Industries:
- Automobile
- Agricultural Machinery
- Electrical Machinery
In the event of equipment abnormalities or trouble, signals from wireless buttons or sensors can quickly notify the person in charge. This promotes immediate response, contributing to reduced recovery time and ensuring safety at the site.
Opening and Closing the Shutter
- Industries:
- Food
- Logistics
- Warehouse
By enabling remote control of shutter opening and closing using wireless devices, you can reduce the effort required for movement and operation during work.
Since the opening and closing controls can be performed while riding on a forklift, it leads to improved work efficiency.
Detection of Part Shortages
- Industries:
- Automobile
- Precision Instruments
- Industrial Machinery
By combining sensors and wireless communication, part shortages are automatically detected and immediately notified to the person in charge.
By preventing delays in part replenishment, the risk of production line stoppage is reduced, supporting stable operation.
Operation of the Winch
- Industries:
- Ironmaking
- Metalworking
By using wireless equipment, it becomes possible to operate the winch from a distant location.
Operators can perform hoisting and lowering from a safe location, minimizing entry into hazardous areas.

Demo Equipment Rental Service

We offer free demo machine rentals for evaluation and verification purposes to customers considering the introduction of our products.
For demo machine rental requests, please contact our distributor or our sales department.

To Request Demo Machine

System Configuration Overview

The transmitter can be used with push-button type, contact type, or a combination of both. The receiver can be configured with a simple contact output.

Since no cloud service is used, it is possible to build the system with no monthly usage fee.
The system can be used simply and easily without the need to use a setup application during setup.

Transmitter

Receiver

Push-Button
Type

2/8-Button
Transmitter

2/4/6/8-Button
Small Transmitter

2-Output Contact Receiver

Equipment/Machinery

Contact
Type

Equipment/Machinery

2/8-Input Contact Transmitter

8-Output Contact Receiver

Equipment/Machinery

App-Free
Cloud-Free
Small Start

Communication Distance

Our system adopts a proprietary wireless protocol in the 2.4GHz band, achieving stable wireless communication even at distant locations.
It is faster than the Sub-GHz band, enabling faster input/output response.

Indoors

Approx.
20m(22yd)

Response Time
Approx.50ms

In clear line of
sight locations

Approx.50m(55yd)

Response Time
Approx.50ms

Note: The response time refers to the duration from when a signal is input to the input terminal until it is output from the output terminal of the communication partner.
The response time and communication distance may vary depending on usage conditions.
When outputting in through mode, the response time at the receiver's contact output OFF state is approximately 120 ms.

i: If a longer communication distance is required, please refer to the model capable of long distance communication in the Sub-GHz band. (Available in Canada / USA)

Check Long-Distance Communication Model

Stable Wireless Quality and a Wide Range of Combinations

Based on years of experience in 'wireless implementation for factories', we have developed proprietary wireless technology, enabling stable wireless communication for remote control of equipment and machinery.
In addition to one-to-one transmitter-receiver combinations, it also supports one-to-many (1 to N) and many-to-one (N to 1) configurations.

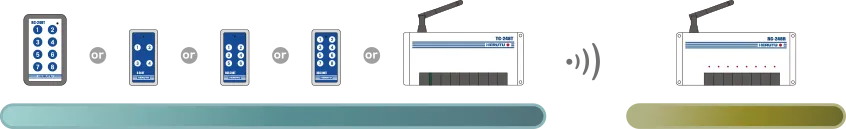

1:1

2-Button Transmitter / 2-Button Small Transmitter / 2-Input Contact Transmitter: 1 unit

2-Output Contact Receiver: 1 unit

8-Button Transmitter / 4, 6, or 8-Button Small Transmitter / 8-Input Contact Transmitter: 1 unit

8-Output Contact Receiver: 1 unit

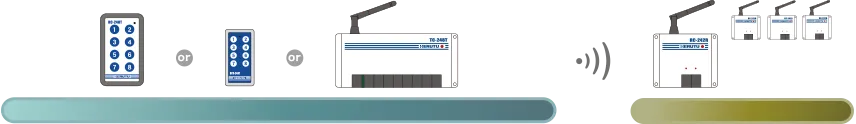

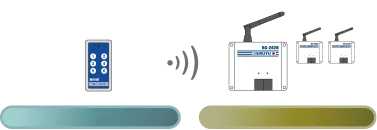

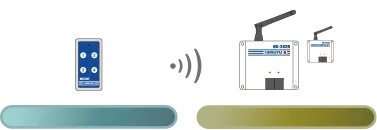

1:N

8-Button Transmitter / 8-Button Small Transmitter / 8-Input Contact Transmitter: 1 unit

2-Output Contact Receiver: 4 units

×4

6-Button Small Transmitter: 1 unit

2-Output Contact Receiver: 3 units

×3

4-Button Small Transmitter: 1 unit

2-Output Contact Receiver: 2 units

×2

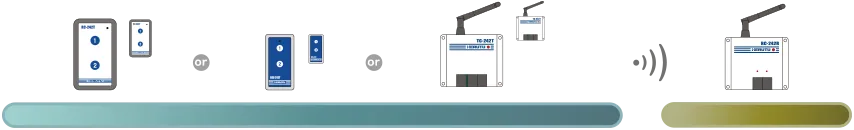

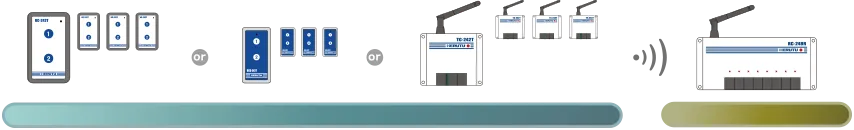

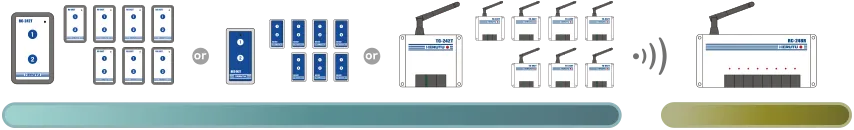

N:1

2-Button Transmitter / 2-Button Small Transmitter / 2-Input Contact Transmitter: 2 units

2-Output Contact Receiver: 1 unit

×2

2-Button Transmitter / 2-Button Small Transmitter / 2-Input Contact Transmitter: 4 units

8-Output Contact Receiver: 1 unit

×4

2-Button Transmitter / 2-Button Small Transmitter / 2-Input Contact Transmitter: 8 units

8-Output Contact Receiver: 1 unit

×8

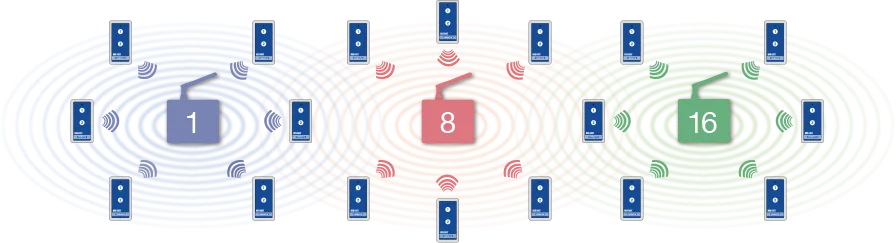

Simultaneous Use of 16 Groups in the Same Communication Area

By changing the operating frequency within the frequency band in the same communication area, communication can be achieved without radio interference. By setting a unique channel table for each group from the 16-channel table, simultaneous use of 16 groups within the same communication area is possible.

Selectable Between "Latch Output" and "Through Output"

You can use either one of the two output modes: 'latch output' or 'through output'.
Flexible choices can be made to meet on-site needs, such as 'output only while pressing' or 'maintain output until cleared'.

Latch Output

[Operation Example]
The receiver contact output turns ON when button 1 on the transmitter is pressed, and the receiver contact output turns OFF when button 2 on the transmitter is pressed.

Transmitter

Receiver

Response
Time

OFF

Pressing Button 1

Pressing Button 2

Approx.
50ms

Note: The response time may vary depending on usage conditions.

Through Output

[Operation Example]
The receiver contact output turns ON while button 1 on the transmitter is pressed, and the receiver contact output turns OFF when button 1 on the transmitter is released.

Transmitter

Receiver

Response
Time

OFF

Continuous Pressing Button 1

Approx.
50ms

Approx.
120ms

Note: In poor radio conditions, the output contact of the receiver may be affected.

The response time may vary depending on usage conditions.

i: For specific input/output circuit connection methods, please refer to the documentation regarding connection examples.

Check Connection Examples

Other Notable Features

Long Battery Life with Low Power Use

Transmitter

2 AAA
Alkaline
Batteries

Approximately 80 Hours with

Continuous Pressing

Approximately
280,000 Times
at One Press per Second

Small
Transmitter

1 Coin
Battery
(CR2032)

Approximately 10 Hours with

Continuous Pressing

Approximately
36,000 Times
at One Press per Second

Note: When used in the 'with answer-back' setting, the battery life will be approximately halved.

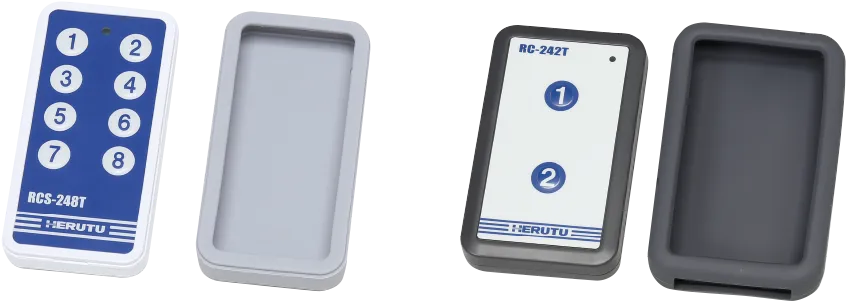

Protective Cover Included as Standard

The transmitter and small transmitter come with a protective cover as standard. The protective cover enhances impact resistance.

Note: It is not waterproof or splash-proof.
Customizable Push Button

Customization of the push button labels on the transmitter and small transmitter is possible. By changing the push button labels to match the work requirements, it is possible to improve usability and reduce operational errors.

Note: Additional production costs will apply.

1

2

OPEN

CLOSE

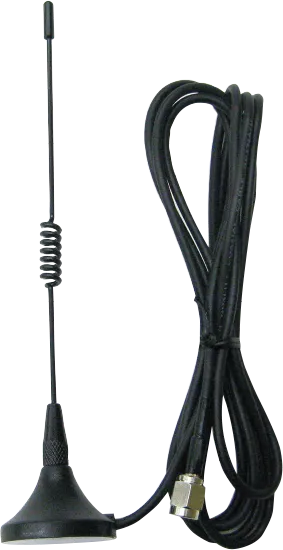

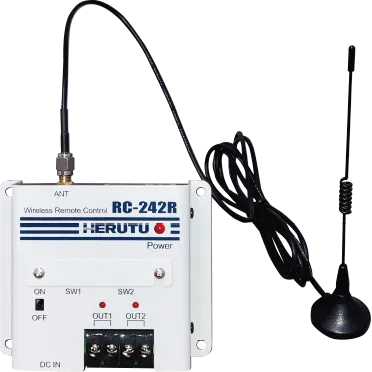

External Antenna Available as an Option

We provide an external antenna to accommodate installation in control panels and locations where radio signals are difficult to reach. Easy installation is possible due to the included magnet.

The cable length is 1.5 m (4.9 ft).

Product Lineup

Small Transmitters

RCS-242T
RCS-244T
RCS-246T
RCS-248T

Transmitters

RC-242T
RC-248T

Contact-Transmitters

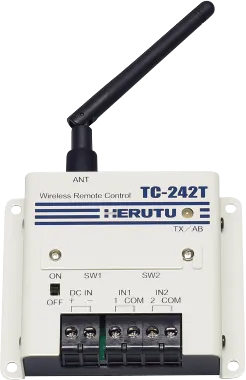

TC-242TF

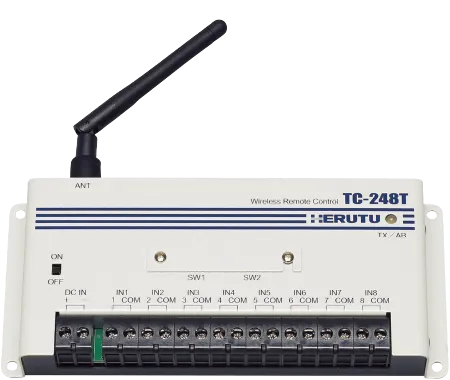

TC-248TF

Receivers

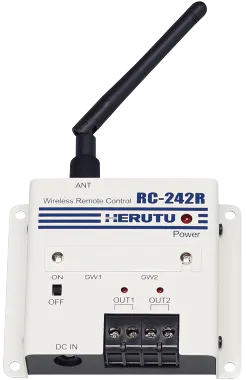

RC-242RF

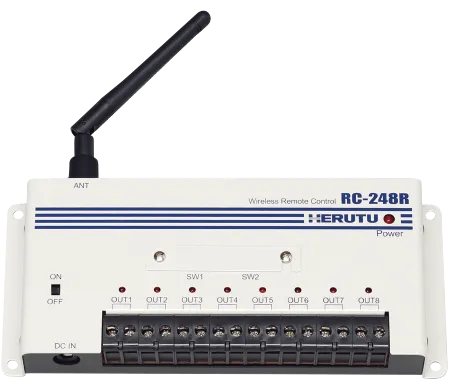

RC-248RF

Options

Strap
STPS-450L
AC Adapter
ADB24050-C
External Antenna
MB-13F-1.5-SMB
