Pokayoke Compact Transmitter TW-850T

Improving Workability and Maintainability of Tools

Pokayoke Compact Transmitter

TW-850T

This is a compact transmitter that improves the workability and maintainability of Pokayoke compatible tools with the same communication performance of the Pokayoke transmitter TW-800T.

More compact with the same communication performance
Easy battery replacement
Notification by LED / buzzer

The transmitter can be attached to various tools, including electric screwdrivers,
cable tie guns, the LOCTITE(R) hand pumps, stamps, and more.

Please use TW-800T / TW-800T-PLR as a transmitter
for a torque wrench and a pliers wrench.

TW-800T
TW-800T-PLR

More compact with the same
communication performance

Lengthreduced byapprox.22%

Widthreduced byapprox.18%

Thicknessreduced byapprox.31%

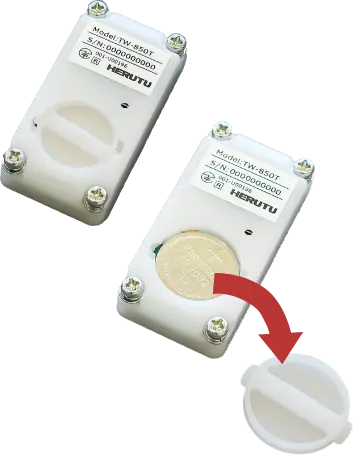

Easy battery replacement

The battery can be replaced by removing the battery cover.

Notification by LED / buzzer

Comm. OKAn LED indicates successful communication.
Comm. FailedAn LED and a sound indicate failed communication.

Specification

Item: Specification
Frequency Band: 2,403MHz-2,478MHz (A free channel is selected automatically by a frequency hopping function.)
Input: 1 Non-voltage Contact Signal
Display: 1 LED (Red / Green)
Buzzer: Piezo Buzzer
Power Source: 1 Coin Battery (CR2032)
External Dimensions (W x H x D): 28 x 55 x 12 mm (1.1 x 2.2 x 0.47") (excluding protrusions)
Weight: About 25g (0.88 oz)
Antenna: Chip Antenna
Battery Life: Approx. 300,000 Uses (depends on usage conditions)
Accessories: 1 Coin Battery (CR2032)
1 Connector Cable for Connection (approx. 20cm (7.9"))
Available Countries: Canada / US / Japan / China / Thailand / Vietnam / Phillippines / India

TW-850T can be used in combination with TW-800 series receivers.

Lineup of Pokayoke transmitters

TW-850T
TW-800T
TW-800T-PLR

	TW-850T	TW-800T	TW-800T-PLR
Input	1 Non-voltage Contact Signal	1 Non-voltage Contact Signal	1 Non-voltage Contact Signal ※Switching the input signal from 'On' to 'Off' transmits.
Display	1 LED (Red / Green)
Buzzer	Piezo Buzzer	-
Power Source	1 Coin Battery (CR2032)
External Dimensions (W x H x D)	28 × 55 × 12 mm (1.1 x 2.2 x 0.47") (excluding protrusions)	34 × 71 × 17.5 mm (1.3 x 2.8 x 0.7") (excluding protrusions)
Weight	About 25g (0.88 oz)	About 40g (1.4 oz)
Accessories	1 Coin Battery (CR2032) 1 Connector Cable for Connection (approx. 20cm(7.9"))	1 Coin Battery (CR2032) 1 Wire Harness with Limit Switch	1 Coin Battery (CR2032) 1 Wire Harness with Limit Switch 1 Screws for fitting
Available Countries	Canada / US / Japan / China / Thailand / Vietnam / Phillippines / India	Canada / US / Japan / China / Taiwan / Thailand / Vietnam / Malaysia / Phillippines / Indonesia / India	Canada / US / Japan / China / Taiwan / Thailand / Vietnam / Malaysia / Phillippines / Indonesia / India
