Pokayoke Receivers TW-870R series

Pokayoke Receiver with Enhanced Wireless Performance and Improved Power Efficiency

Pokayoke
Receiver
TW-870R Series

The TW-870R series is a Pokayoke receiver that achieves both "enhanced reception performance" and "improved power efficiency" by incorporating 4 antennas and 4 high-performance wireless modules with low power consumption. In addition, through the Windows application "Pokayoke Tools Settings" *1 , it is possible to "monitor the wireless communication status with the Pokayoke transmitters" and "change the channel used for wireless communication and the maximum number of transmissions with the latest version of the Pokayoke transmitters" *2 .

TW-870R-EXL LAN Connection Type
[TW-870R-EXL]
  • TW-870R 1-Relay Output Type
    【TW-870R】
  • TW-870R-EXP 4-Relay Output Type
    【TW-870R-EXP】

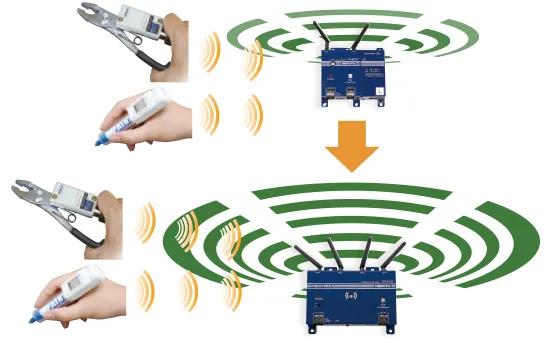

Wireless Communication Efficiency Improved by up to 30%

The TW-870R series reduces the average number of transmissions required to establish communication with Pokayoke transmitters by up to 30% (compared to current receivers), thereby extending the battery life of the transmitters.

Communication Efficiency Improved by up to 30%

Communication Efficiency Improved by up to

30%

New

Saving of Communication Logs for Work Performed Using Tools Possible*4

The TW-870R series can save up to 8,000 communication logs between the Pokayoke transmitters and the TW-870R series, and output them in CSV format via "Pokayoke Tools Settings".
Communication logs can be used to analyze wireless communication status in production processes and manage work histories using tools such as power tools, torque wrenches, pliers wrenches, and the Check Pen S.

[Communication Log Details]
Communication date and time, transmitter serial No., task results, channel, number of transmissions, etc.

Saving up to 8,000 Communication
Logs for Work Performed Using Tools

  • For Work Performed Using Tools
    Supporting Count Management

    For Work Performed Using Tools Supporting Count Management

    Task Results

    Work Completion for Each Task

  • For Work Performed Using Tools
    Supporting Data Transmission

    For Work Performed Using Tools Supporting Data Transmission

    Task Results

    Tightening data for each task,
    such as torque value, angle value,
    tightening time, etc.

Monitorable Wireless Communication Status

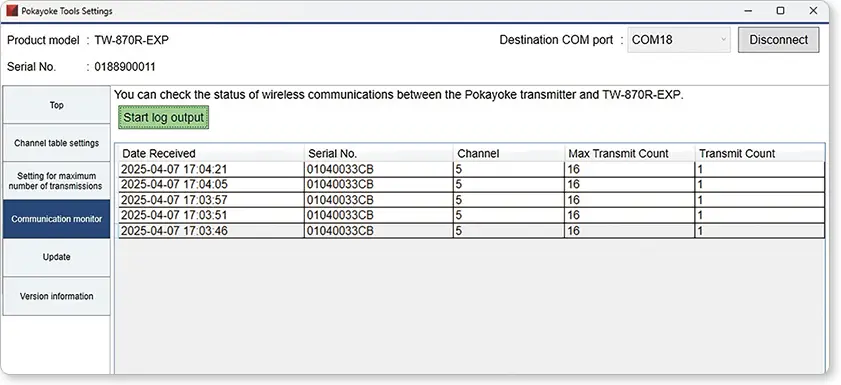

Wireless communication status between Pokayoke transmitters and the TW-870R series can be monitored and recorded via "Pokayoke Tools Settings". If wireless communication between Pokayoke transmitters and the TW-870R series is unstable, monitoring the communication status may provide insights for improving communication quality.

Pokayoke Tools Settings

Changeable Channel and Maximum Number of Transmissions*3

If wireless communication is unstable, it may be possible to improve communication quality between the Pokayoke transmitters and the TW-870R series by selecting, via "Pokayoke Tools Settings", a channel that does not overlap with the frequencies used by other 2.4 GHz wireless devices, or by increasing the maximum number of transmissions of the Pokayoke transmitters.

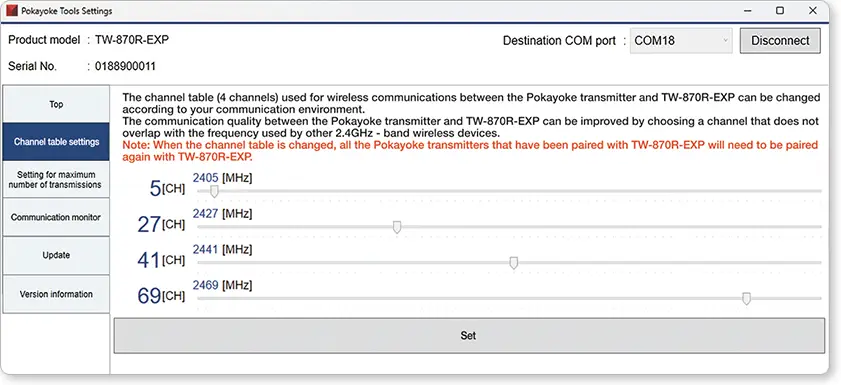

Channel Change The channel can be changed with intuitive operation.
Pokayoke Tools Settings
Maximum Number of Transmissions Change Selectable from
16, 64, 128, or 255.
Maximum Number of Transmissions Change

The "maximum number of transmissions" refers to the "maximum number of times communication is continued until wireless communication is successful".
The factory default setting for the maximum number of transmissions is 16.

Standby Power Consumption 50% Lower (vs. TW-800R)

The standby power consumption of the TW-870R is 50% lower than that of the TW-800R, contributing to improved energy efficiency.

TW-800R

TW-870R

Standby Power Consumption 50% Lower (vs. TW-800R)

Standby Power Consumption

50% Lower

*1:
The Windows application "Pokayoke Tools Settings" can be downloaded free of charge from the "Download Software" page.
*2:
"Latest version of the Pokayoke transmitters" refers to the Pokayoke transmitters with "serial numbers whose first three digits are 014".
*3:
This applies only to wireless communication with the latest version of the Pokayoke transmitters.
*4:
Pokayoke Tools Settings V1.10 or later is required to save communication logs.

Other Features

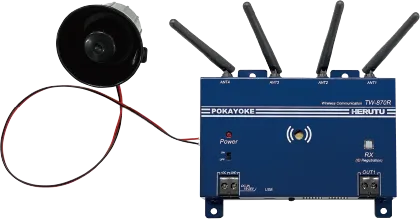

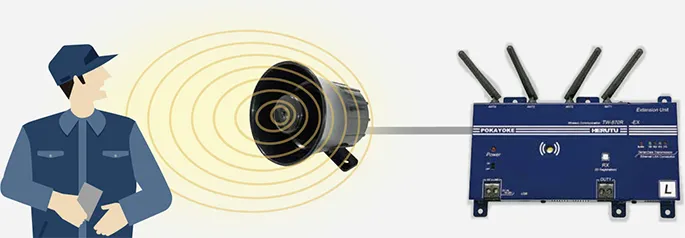

The optional high-volume buzzer "TW-870R-BZ01" (103 dB at 1m) can be added later. Compared to the built-in piezo buzzer, it offers greater directionality, allowing operators to clearly confirm task completion when it is oriented toward them.

high-volume buzzer
  • The configuration DIP switches of the TW-870R series are the same as those of the current receivers.

    • Current Receiver

      Current Receiver

    • TW-870R

      TW-870R

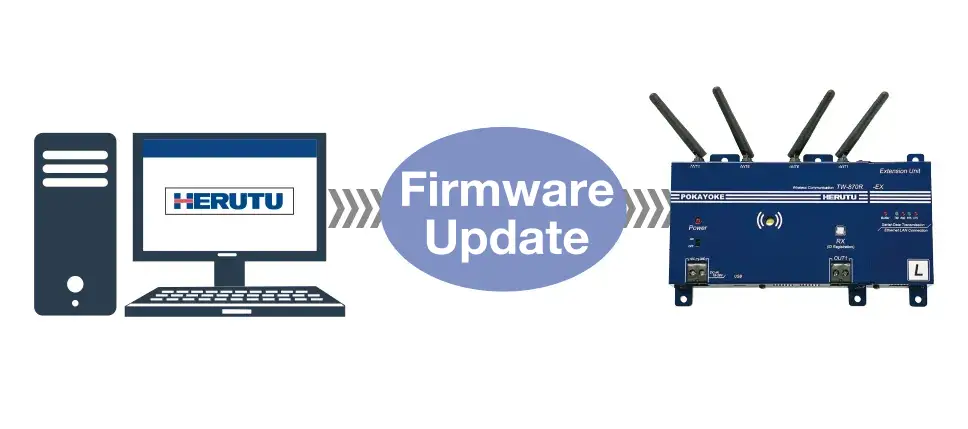

  • Firmware updates for the TW-870R series can be performed via a computer.

    UPDATE

Specifications

TW-870R

1-Relay Output Type

TW-870R

TW-870R-EXP

4-Relay Output Type

TW-870R-EXP

TW-870R-EXL

LAN Connection Type

TW-870R-EXL

Output(s) 1 Relay Output (Terminal Block M3)
Rated Load AC / DC 30V / 0.5A
1 output for High-Volume Buzzer (TW-870R-BZ01)
4 Relay Output (Terminal Block M3)
Rated Load AC / DC 30V / 0.5A
1 output for High-Volume Buzzer (TW-870R-BZ01)
1 Relay Output (Terminal Block M3)
Rated Load AC / DC 30V / 0.5A
1 output for High-Volume Buzzer (TW-870R-BZ01)
Interface USB Type-C (USB 2.0 Support) for Pokayoke Tools Settings Connection RJ-45 Ethernet 10BASE-T/100BASE-TX
(Auto-Sensing)
"POKAYOKE plus" Support
USB Type-C (USB 2.0 Support)
for Pokayoke Tools Settings Connection
Available Countries Japan / Canada / USA / China / Thailand / Vietnam / India
Display 1 RX LED (Green) (also as lighting switch for pairing)
1 Power LED (Red)
4 RX LEDs (Green) (also as lighting switch for pairing)
1 Power LED (Red)
1 RX LED (Green) (also as lighting switch for pairing)
1 Power LED (Red)
3 Comm. Monitor LEDs (Red)
2 Comm. Monitor LEDs (Green)
Switch 1 Power Switch
2 Switches (6-Position DIP) for Setting
1 Lighting Switch for Pairing
1 Power Switch
2 Switches (6-Position DIP) for Setting
4 Lighting Switches for Pairing
1 Power Switch
3 Switches (6-Position DIP) for Setting
1 Lighting Switch for Pairing
Buzzer Piezo Buzzer: 95dB at 1m (3.3ft)
External
Dimensions
(W x H x D)
160 × 100 × 30 mm
(6.3 × 5.1 × 1.2")
(excluding protrusions)
210 × 100 × 30 mm
(8.3 × 5.1 × 1.2")
(excluding protrusions)
Power Source DC 24 V ±20% (DC 19-28 V) (Terminal Block M3)
Current Consumption 30 mA or less 40 mA or less 80 mA or less
Weight Approx. 451g (15.9oz) Approx. 607g (21.4oz) Approx. 611g (21.5oz)
Operating Environment Temperature: 0-50°C (32-122°F) Humidity: 80% or less (without condensation)
Frequency Band 2,403MHz – 2,478MHz
Antenna Dipole Antennas: 4 (Non-removable)
Accessory -
Options AC Adapter [ADB24050-C]
High-Volume Buzzer [TW-870R-BZ01]

High-Volume Buzzer [TW-870R-BZ01]

The buzzer can be connected and used with the TW-870R, TW-870R-EXP, and TW-870R-EXL.

Power Source DC 12-24 V
Current Consumption 80 mA or less
Sound Pressure Minimum 103 dB at 1m (3.3ft)
External
Dimensions
(W x H x D)
69 × 73 × 64 mm (2.7 × 2.9 × 2.5")(excluding protrusions)
Weight 57 g (2.0 oz)
Cable 420 mm (16.5") (UL1007, 24 AWG)
Installation Method Fixed with the included bracket (M4 screws)
TW-870R-BZ01

OPTIONS

AC Adapter [ADB24050-C]

AC Adapter [ADB24050-C]

High-Volume Buzzer: Sound Pressure of 103dB at 1m (3.3ft)[TW-870R-BZ01]

High-Volume Buzzer: Sound
Pressure of 103 dB at 1 m (3.3 ft)
[TW-870R-BZ01]
