Pokayoke Tools

Pokayoke Slim Transmitter TW-810T

Improved Workability of Pokayoke Compatible Tools

Pokayoke Slim Transmitter
TW-810T

Slimmer and featuring a longer battery life and an extended communication distance compared with the existing Pokayoke transmitter TW-800T, this transmitter greatly enhances the workability of Pokayoke-compatible tools.

Slim<a thickness of 10 mm/0.4 in>
Extended battery life<900,000 uses>
Extended communication distance<50 m/55 yd>

Comparison of TW-800T and TW-810T

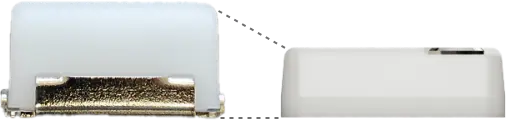

Slim
<a thickness of 10 mm/0.4 in>

TW-800T

TW-810T

Thickness of 17.5 mm
(0.7 in)

Thickness of 10 mm
(0.4 in)

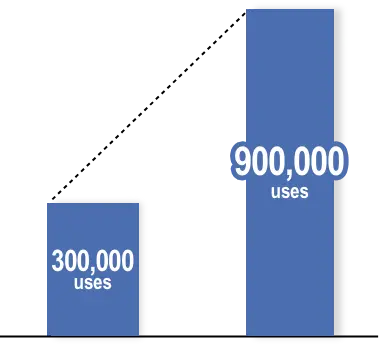

Extended battery life
<900,000 uses>

(Using coin battery CR2032)

TW-800T

TW-810T

Extended communication distance
<50 m/55 yd>

TW-800T

TW-810T

Extended communication distance

Improved maintainability

Features a durable case material
Uses a mechanism to prevent switch damage

Has a communication status notification feature: (LED to display communication status of environment in use)

Has a battery level notification feature: (LED to display when to replace the battery in the transmitter)

Compatible size for attachment of TW-800T

The TW-810T can be used as is by attaching it to tools such as torque wrenches, pliers wrenches to which the TW-800T is attached.

Spring Hose Clip Type Pliers Wrench(AE-200)

We have a lineup of various Pokayoke transmitters.

Pokayoke Slim Transmitter
TW-810T

Pokayoke Compact Transmitter
TW-850T

Pokayoke Transmitter
TW-800T

Pokayoke Wireless Unit
HCP-2402T-MC

	TW-810T	TW-850T	TW-800T	HCP-2402T-MC
Frequency Band	2,403 MHz-2,478 MHz (A free channel is selected automatically by a frequency hopping function.)
Input	1 Non-voltage Contact Signal
Display	Communication Status Notification (Green / Yellow / Red) Battery Level Notification (Orange)	Communication Monitor and Battery Level Notification (Green / Red)
Power Source	1 Coin Battery (CR2032)			DC 2.2 V-6.0 V
External Dimensions (W x H x D)	32 x 66 x 10 mm (1.3 x 2.6 x 0.4") (excluding protrusions)	28 x 55 x 12 mm (1.1 x 2.2 x 0.5") (excluding protrusions)	34 x 71 x 17.5 mm (1.3 x 2.8 x 0.7") (excluding protrusions)	20 x 30 x 6.4 mm (0.8 x 1.2 x 0.3")
Weight	Approx. 21 g (0.74 oz)	Approx. 25 g (0.88 oz)	Approx. 40 g (1.41 oz)	Approx. 2.5 g (0.088 oz)
Antenna	Inverted-F Metal Plate Antenna	Chip Antenna	PCB Antenna	Chip Antenna
Battery Life	900,000 Uses (depends on usage conditions)	300,000 Uses (depends on usage conditions)		-
Communication Distance	50 m (55 yd) (depends on usage conditions)	30 m (33 yd) (depends on usage conditions)
Available Countries	Japan / Canada / US / China / Thailand / Vietnam / Indonesia / India	Japan / Canada / US / China / Thailand / Vietnam / Phillippines / India	Japan / Canada / US / China / Taiwan / Thailand / Vietnam / Malaysia / Phillippines / Indonesia / India	Japan / Canada / US / China / Thailand / Vietnam / Phillippines / Indonesia / India
Accessories	1 Wire Harness Connector with Micro Limit Switch (TW810T-HCL) 1 Coin Battery (CR2032) Note: the wire harness connector with micro limit switch for TW-800T cannot be used.	1 Connector Cable for Connection 1 Coin Battery (CR2032)	1 Wire Harness Connector with Micro Limit Switch (TW800T-HCL) 1 Coin Battery (CR2032) Note: the wire harness connector with micro limit switch for TW-810T cannot be used.	-
